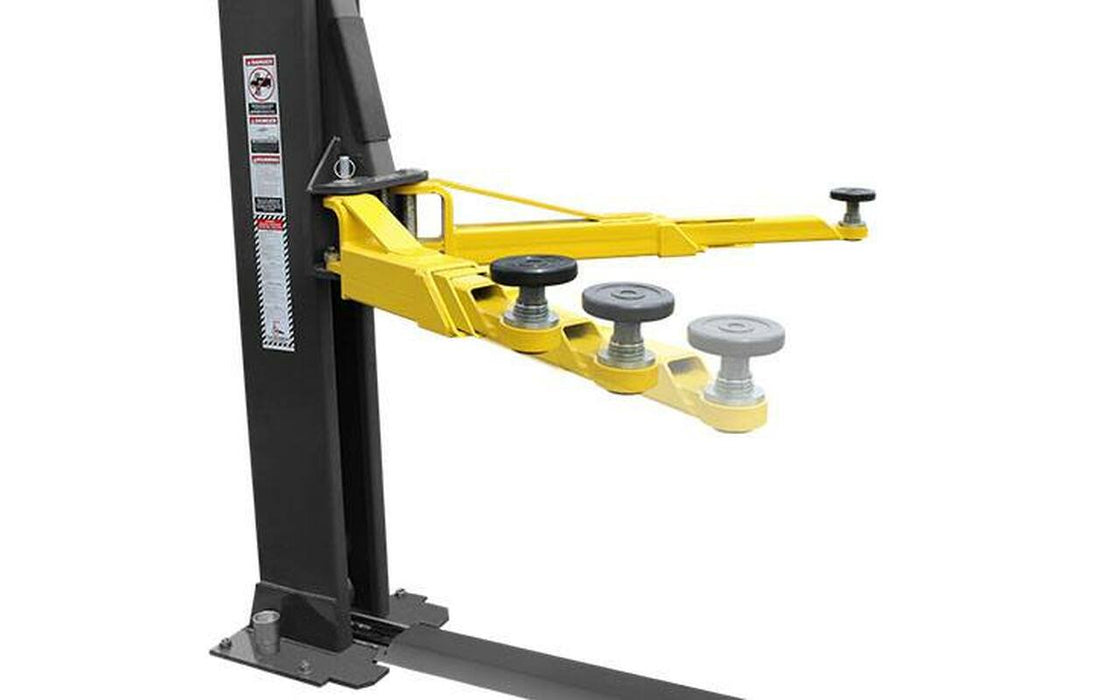

Bendpak XPR-12FDL 12,000 Lbs Floorplate 2-Post Lift (50175403)

Bendpak XPR-12FDL 12,000 Lbs Floorplate 2-Post Lift(50175403)

• The XPR-12FDL two-post lift is the perfect lifting application for everything that falls in its weight class. Two robust posts are capable of raising some truly massive trucks and SUVs. This might be classified as our “medium-duty” lift, as it covers almost every vehicle in the homeowner/residential arena. It also lifts some commercial vans and trucks, including highrise vehicles. The XPR-12FDL is an open-top design. An opentop car lift does not have a crossbar over the top of the lift, which is desirable for taller vehicles. The hydraulic lines run on the floor, under a floorplate, between the posts.
• If you appreciate the superior quality of a BendPak XPR-9 or 10 series two-post lift but need more lifting power, the XPR-12FDL is an open-top car lift that’s packed with pure, brutish muscle. This lift is perfect for shops and garages with ceilings 14’ and higher.

XPR-12FDL lifts include:

• Dual direct-drive cylinders that reduce the workload of the entire hydraulic system and save maintenance costs
• Maintenance-free high-tech UHMW load bearings
• Triple-telescoping arm set for maximum reach
• High-speed hydraulics for faster ascent and descent that increase productivity
• Automatic arm restraints for quick operation and safety
• Wider column spacing to accommodate even trucks with fixed towing mirrors

XPR-12FDL Characteristics:

• Lift Capacity: 12,000 lbs.
• Height: 144”
• Width: 155”
• Lift height: 69”
• Type: Floor Plate

XPR-12FDL Offers Heavy-Duty Lifting Capability

• The XPR-12FDL is the perfect lifting application for everything that falls in its weight class. Two robust posts are capable of raising some truly massive trucks and SUVs. This might be classified as our “medium-duty” lift, as it covers almost every vehicle in the homeowner/residential arena. It also lifts some commercial vans and trucks, including high-rise vehicles like Sprinters.
• However, even though this car lift is made to handle massive vehicles, it belongs in every auto shop or serious DIY garage that lifts trucks, farm equipment, work vans, etc. It might be the most versatile lift you ever own, given that its low-profile arms will easily reach the lift points of low-stance race cars and sports cars (including both foreign and domestic models). The columns are set wide to fit trucks and SUVs, but the dual triple-telescoping arms reach farther than the arms on our lighter-duty lifts. With the XPR-12FDL, you’re not sacrificing the ability to service smaller vehicles as you gain the ability to service large ones.
• The XPR-12FDL is an open-top design. An open-top lift does not have a crossbar over the top of the lift, which is desirable for taller vehicles. The hydraulic lines run on the floor, under a floorplate, between the posts.

Features:

• 12,000-lb. lifting capacity
• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
• Open-top eliminates overhead obstruction
• Single-piece columns
• Single-point safety release
• Drop-end arms provide a lower pad height
• Dual direct-drive hydraulic cylinders

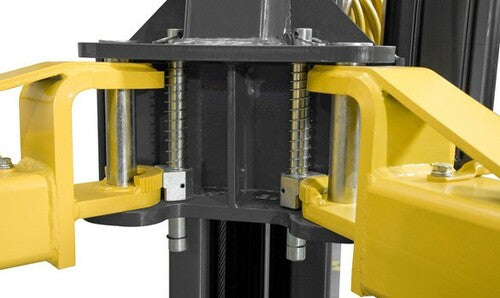

• Oversized 53" tall carriage for superior strength and durability
• Large, 25" x 22" A36 steel base plate
• Electric / hydraulic power system
• Oversized A36 steel base plates
• Self-lubricating dura-glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3"
• Plated arm restraints and arm pins for rust prevention
• Heavy-duty 1/2" aircraft-quality equalizer cables
• Oversized 6" cable sheave diameter reduces cable fatigue

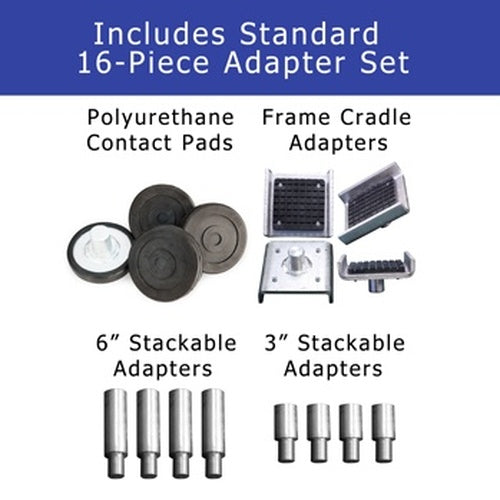

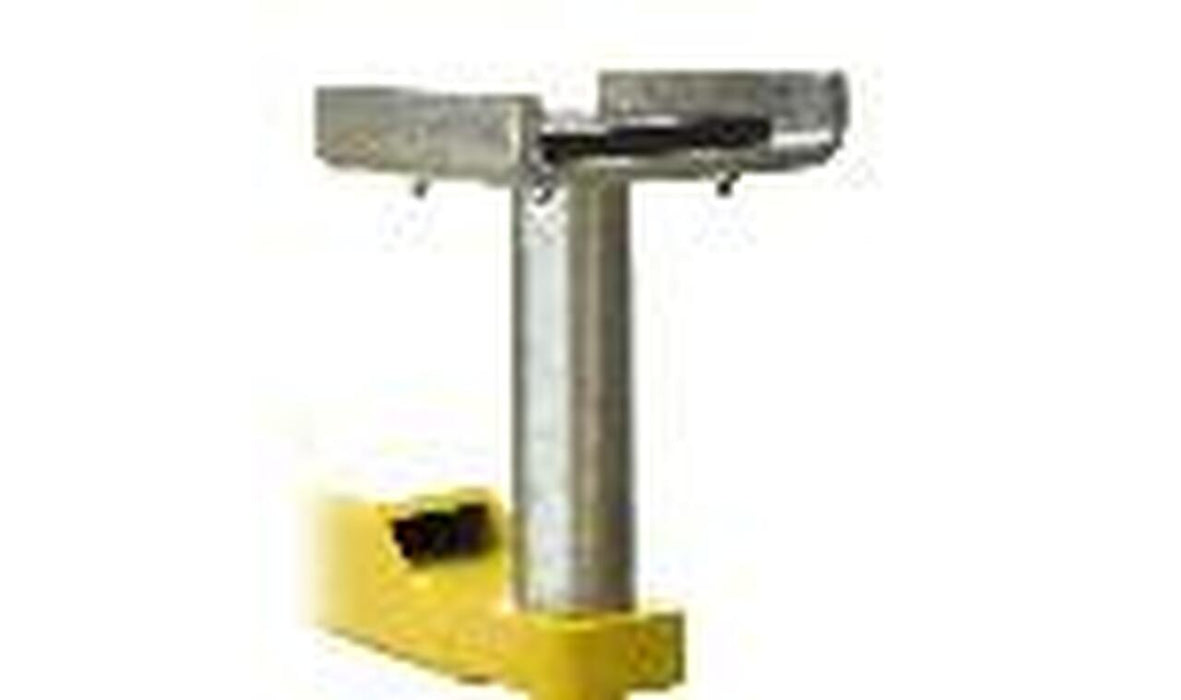

• 16-piece specialty adapter set includes four 6" stackable adapters, four 3" stackable adapters, four polyurethane contact pads and four frame cradle pads

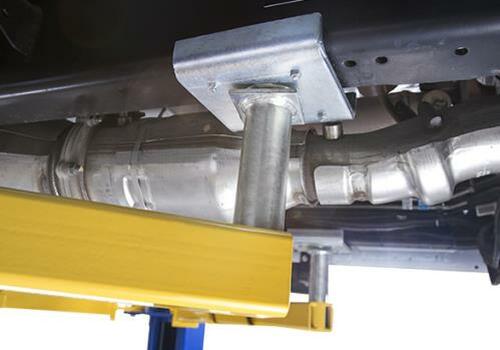

• Front and rear triple-telescoping arms provide increased range for lifting point access

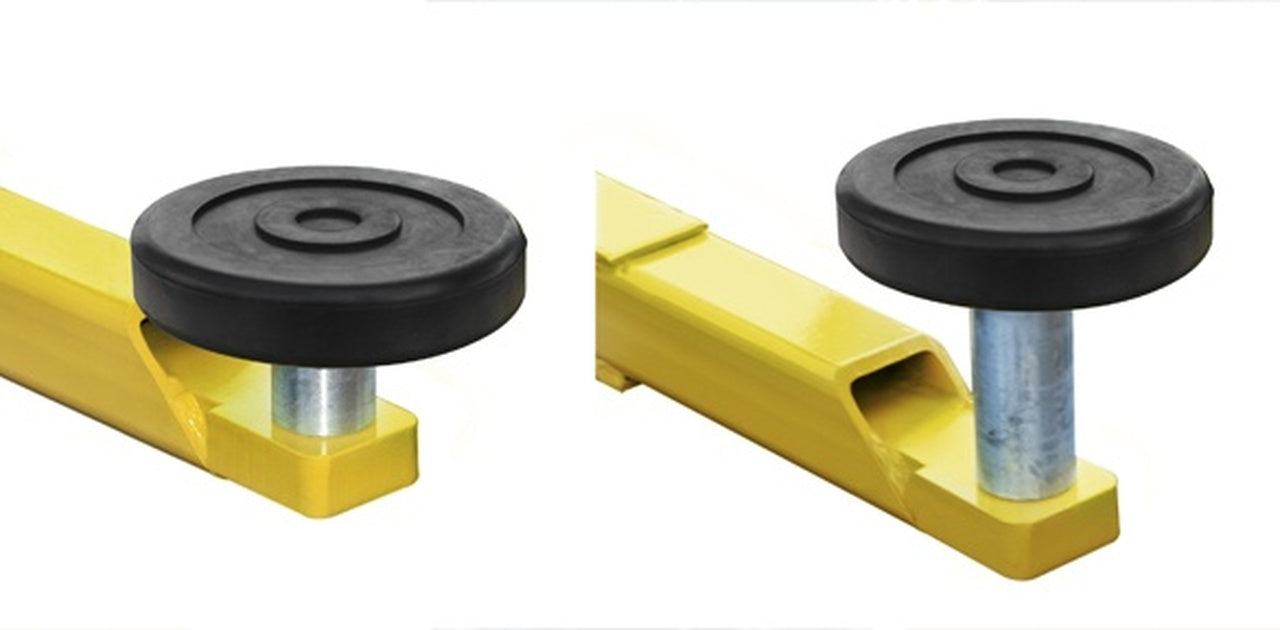

• Versatile drop-in contact pads with stackable adapters

 Specifications:

Capacity

• Lifting Capacity* 12,000 lbs. (5,443 kg)
• *Max Capacity / Front Axle 6,000 lbs. (2,722 kg)
• *Max Capacity / Rear Axle 6,000 lbs. (2,722 kg)

Rise

• A - Rise: 69" (1,753 mm)
• B - Rise + Pad Only: 74" (1,880 mm)
• C - Rise + Pad + 63 mm Adapter: 79" (2,007 mm)
• D - Min. Height + Pad: 5" (127 mm)
• Time to Full Rise: 55 seconds

Outside Dimensions

• E - Height Overall: 144" (3,658 mm)
• F - Width Overall: 155" (3,937 mm)
• G - Outside Columns: 146" (3,708 mm)

Inside Dimensions

• H - Inside Columns: 118" (2,997 mm)
• I - Drive-Thru Clearance: 103" (2,616 mm)

Arms & Pads

• K - Front Arm Reach: (MIN) 39" (991 mm)
• K - Front Arm Reach: (MAX) 59" (1,499 mm)
• L - Rear Arm Reach: (MIN) 39" (991 mm)
• L - Rear Arm Reach: (MAX) 59" (1,499 mm)
• Max Load Per Arm 3,000 lbs. (1,361 kg)

Floorplate

• L - Height: 2" (51 mm)
• M - Width: 8.5" (216 mm)

Power Unit

• Motor: 220 VAC / 60 Hz / 1 Ph

• Noise: 45 dB
