2 Person Athena WS-112 Steam Shower 59" x 36" x 87"

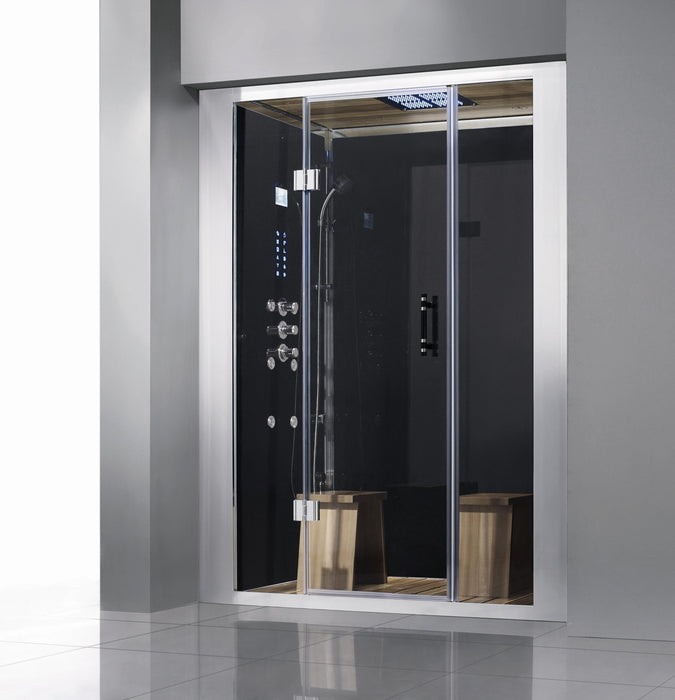

The Athena WS-112 steam shower is designed to retrofit a standard bathtub configuration. This two-person luxury steam bath features a high-output 4.5KW steam engine, 12 acupressure body jets, and two removable wooden stools. The WS-112 is a spacious fully loaded top of the line luxury steam shower. The real oak wood ceiling and floor grids, combined with a heavy duty hinged glass door and polished aluminum trim add style and distinct luxury to any bathroom.
Product Features
- 59" x 36" x 87"(Add 2" for ventilation exhaust pipe)
- Available in Black or White
- 220V ETL Approved (US & Canada)
- 4.5V High Output Steam Engine
- 12 Accupuncture Massage Jets
- Rainfall Ceiling Shower
- Polished Aluminum Trim
- Black Tempered glass walls
- Adjustable Handheld Showerhead
- Available in Black or White
- Optional Sliding Glass Door
- 4.5KW High-Efficiency Steam Generator
- LCD Computer Control Panel

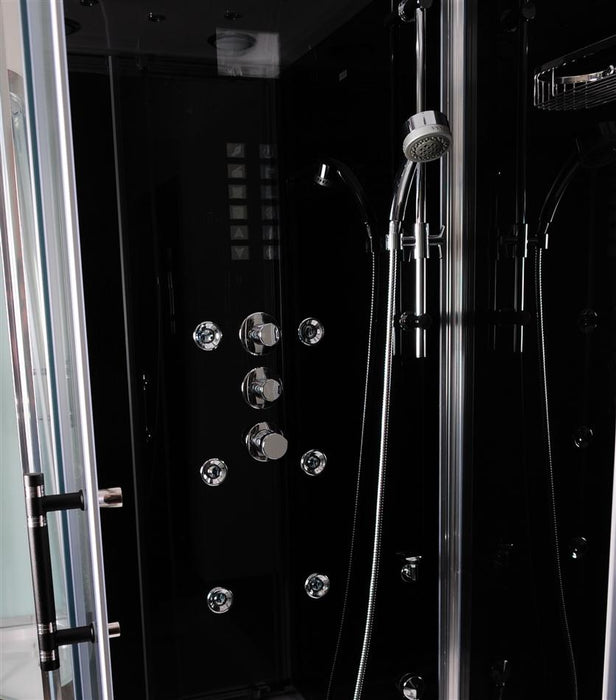

- 12 Acupressure Massage Jets
- Aromatherapy Dispenser

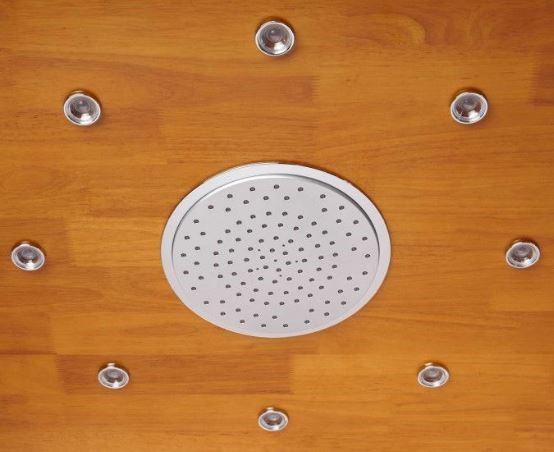

- Deluxe Rainfall Ceiling Shower

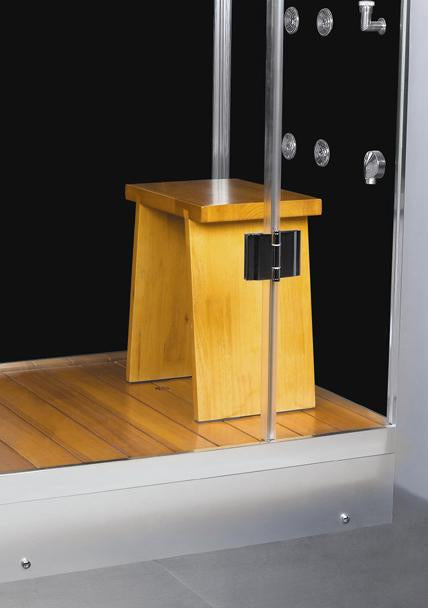

- Dual Wooden Seats
- FM Radio with MP3
- 7 Year Warranty
Additional Steam Shower Features

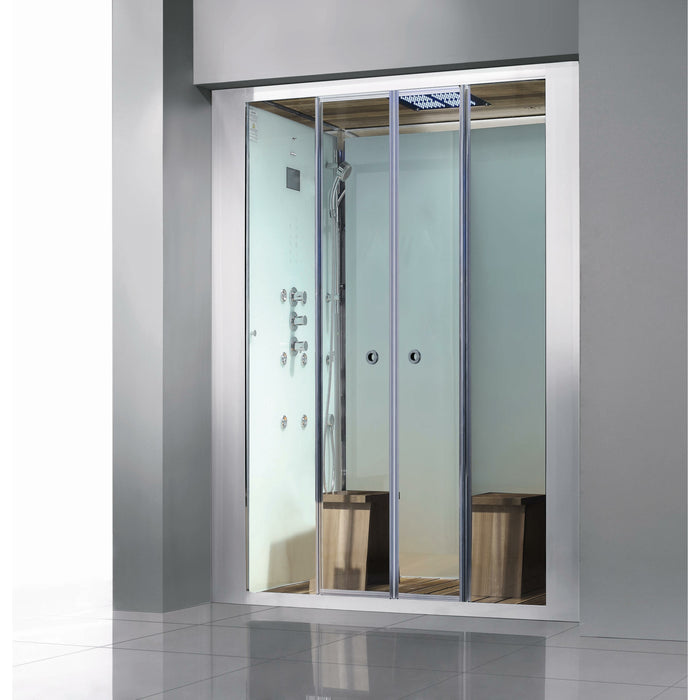

- Optional Sliding Glass Door

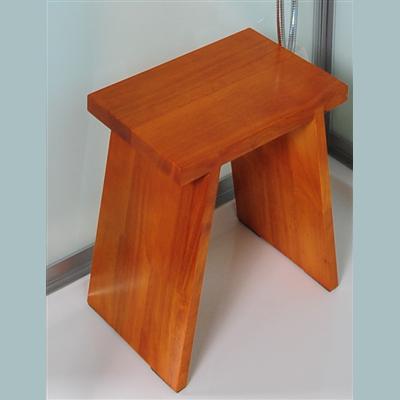

- 2 Waterproof Wood Stools
- FM Radio with MP3
- Aromatherapy System (Oils not Included)

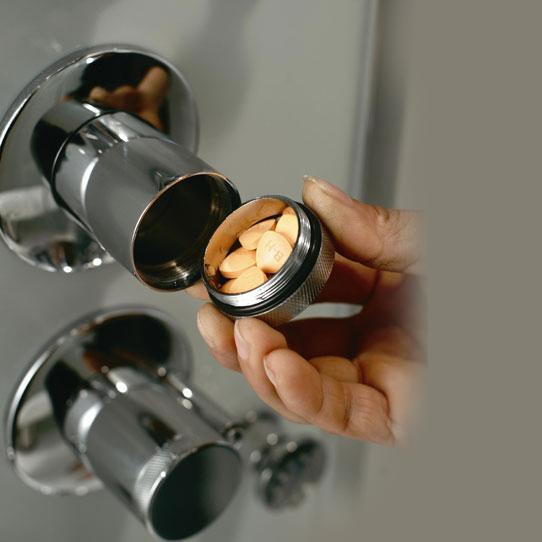

- Vitamin C Shower Filter
- Touch Glass Control Panel
- Computer Control Panel with Timer
- Drain with trap included
- Ventilation Fan
- Overheat protection
- Tempered Glass
Specs Guide
Installation Guide
Warranty Policy
All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include the acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.
Does the unit come in one piece or in panels?
All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What type of Electrical Connection and Breaker will I need?
One 30 AMP GFCI Breaker.
I would like to place on the second floor, will there be a weight problem?
The unit is about 500 lbs.+water and your weight, and that is definitely a case by case type question. Please consult your contractor based off of these weights we have provided.
What does the inline heat pump do?
The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
How many HOT/COLD Connections are required?
Regardless of the number of showerheads, all units have one hot/cold connection.
Where is the HOT/COLD Connection located?
The connection is located behind the shower hot/cold controls which differs per unit. Normally the hot/cold is about 30" from the the floor on the back of the unit. Flex hoses are included for easy hook ups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.
Where is the steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up an room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.
Do I need an access panel?
The steam showers are designed to be free standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
Manufacturer Warranty applies to purchases of any product at Ambient Home
